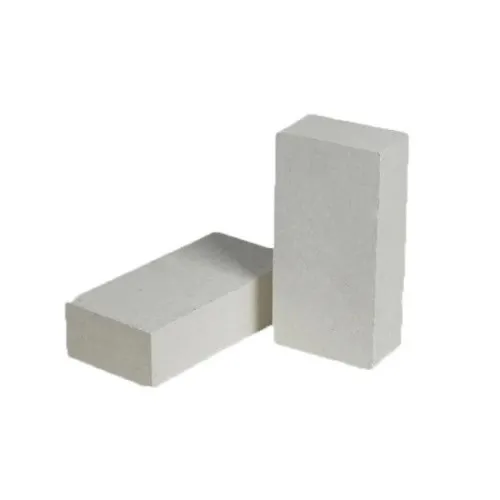

AZS Brick yog lub npe luv ntawm electrofusion zirconium corundum cib. Cov cib no tseem tuaj yeem hu ua AZS electrofusion zirconia corundum cib. Muaj peb yam tshuaj lom neeg Al2O3, ZrO2 thiab SiO2 hauv AZS cib. Raws li daim duab qhia theem thiab cov ntsiab lus ntawm Al2O3 - ZrO2 - SiO2 peb lub ntsiab lus, AZS siv A los ntawm Al2O3, Z los ntawm ZrO2 thiab S los ntawm SiO2. AZS refractory cib yog dav siv nyob rau hauv hluav taws xob arc furnaces thiab iav-melting furnaces.
lub cev thiab tshuaj ntsuas ntawm azs cib
Chemical Cheebtsam
|
Yam khoom |
A1101 |
A1102 |
A1103 |
|
Al2O³ |
Margin |
||
|
ZrO2 |
32.5%-34.0% |
35.5%-37.0% |
40.0%-42.0% |
|
Na2O |
1.5% |
1.6% |
1.3% |
|
Fe2O3+TiO2+CaO + MgO + Na2O+K2O+B2O3 |
3% |
2.5% |
2.5% |
|
SiO2 |
16% |
14% |
13% |
|
Fe2O3+TiO2 |
0.3% |
0.3% |
0.3% |
Tej yam crystallographic tsom xam
|
Yam khoom |
A1101 |
A1102 |
A1103 |
|
BD Densified Tshooj |
3.7g / cm³ |
3.75g / cm3 |
3.9g / cm³ |
|
AP Densified Tshooj |
2% |
1.5% |
1.3% |
|
Static Corrosion (Soda-lime iav 1500 degree x 36h) |
1.6 hli / 24h |
1.5 hli / 24h |
1.3 hli / 24h |
|
Exudation kub |
1400 degree |
1400 degree |
1400 degree |
|
Bubbling tus nqi (Soda-lime iav 1300 degree * 10h) |
2% |
1.5% |
1% |
|
iav Phase Seepage Quantity (1500 degree x 4h) |
Muab cov ntaub ntawv ntsuas |
||
|
Coefficient ntawm Thermal Expansion (1000 degree) |
Muab cov ntaub ntawv ntsuas |
||
cov ntsiab lus ntawm azs cib
AZS cib, tseem hu ua electrofused AZS refractories, muaj npe tom qab lawv peb lub ntsiab oxide nyob rau hauv kev txiav txim ntawm concentration - Alumina (Al2O3), Zirconia (ZrO2), thiab Silica (SiO2). Cov ntawv luv A, Z, thiab S raug coj los ntawm thawj cov ntawv.
Cov lej qhia txog feem pua ntawm Zirconia thiab Alumina. Piv txwv li:
AZS-33 yog hais txog 33% ZrO2 electrofused refractory
AZS-36 txhais tau tias 36% ZrO2 electrofused cib
AZS-41 qhia 41% ZrO2 electrofused hauv ob sab phlu
Ntau dua Zirconia thiab Alumina cov ntsiab lus txhawb kev txhim kho corrosion thiab thermal shock tiv thaiv. Tab sis lawv kuj nce nqi. Qhov zoo tshaj AZS qib yog nyob ntawm hom iav, qhov cub tsim, thiab kev ua haujlwm. Kev xaiv cib kom zoo ua rau lub neej ua haujlwm siab tshaj plaws thiab tus nqi ua haujlwm.
raw khoom ntawm azs cib
Cov ntaub ntawv tseem ceeb rau qhov zoo electrofused AZS cib suav nrog:
High purity alumina (Al2O3> 98.5%)
Zircon xuab zeb (ZrO2> 65.6%)
Desiliconized zircon (ZrO2> 85%)
Soda tshauv (Na2CO3 Ntau dua lossis sib npaug li 99%)
Boron xuab zeb (B2O3 Ntau dua lossis sib npaug li 37%)
Tsis tshua muaj ntiaj teb oxides (Y2O3 Ntau dua lossis sib npaug li 45%)
Alumina yog muab los ntawm refining bauxite ores kom tshem tawm silicates, hlau, titanium thiab lwm yam oxides, ua tau zoo heev purity theem siab tshaj 98% Al2O3.
Desiliconized zircon yog tsim los ntawm smelting zircon concentrates nrog carbon nyob rau hauv ib tug hluav taws xob arc rauv kom txo silica.
Zircon, tseem hu ua zirconium silicate, muaj 67.1% ZrO2 thiab 32.9% SiO2. Nws qhov siab 2550 degree melting point, tsis tshua muaj kev nthuav dav, thiab tshuaj tiv thaiv rau cov kua thiab cov kua qaub ua rau nws zoo tagnrho rau AZS cib.
daim ntawv thov ntawm azs cib
Fused cam khwb cia AZS series electrofused refractories muaj tus zoo corrosion kuj, muaj zog adaptability thiab stability, qis cov khoom muaj kuab paug thiab ntau dua piv ntawm kev ua tau zoo rau tus nqi, Fused cam khwb cia AZS series yog dav siv nyob rau hauv lub internal qauv ntawm iav industrial furnaces.
