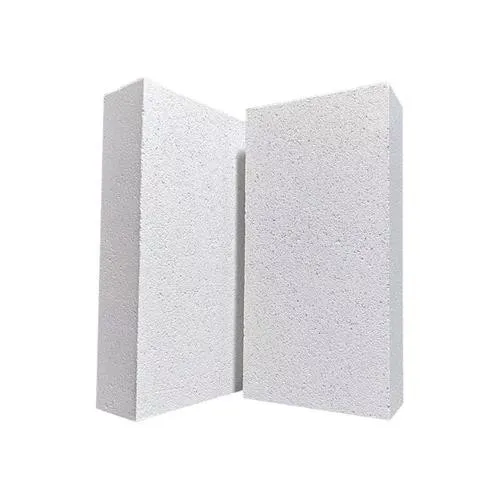

Qhov tshiab micro-nano rwb thaiv tsev cib yog tsim los ua kom tau raws li qhov yuav tsum tau muaj rwb thaiv tsev ntawm cov qhov cub loj thiab cov phab ntsa thiab cov hauv qab, nrog rau kev ua haujlwm kub ntawm 600 degree txog 1400 degree. Cov khoom no boasts zoo rwb thaiv tsev kev ua tau zoo, siab zog, thiab ntau yam kev siv, ua rau nws zoo tagnrho rau kev txhim kho lub zog efficiency thiab ib puag ncig tiv thaiv nyob rau hauv ntau yam kiln ua hauj lwm.
cov ntaub ntawv technical ntawm tshiab micro-nano insulating cib
|
Yam khoom |
Index |
||||
|
Qauv |
WNM0.25 |
WNM0.35 |
WNM0.4 |
WNM0.45 |
WNM0.5 |
|
PEB, g/cm3 |
0.25 |
0.35 |
0.4 |
0.45 |
0.5 |
|
CCS, MPa |
Ntau dua lossis sib npaug rau 0.5 |
Ntau dua lossis sib npaug rau 0.6 |
Ntau dua lossis sib npaug rau 0.8 |
Ntau dua lossis sib npaug rau 1.0 |
Ntau dua lossis sib npaug 2.2 |
|
TC, W / (mK) |
Tsawg dua lossis sib npaug rau 0.1 |
Tsawg dua lossis sib npaug rau 0.105 |
Tsawg dua lossis sib npaug rau 0.110 |
Tsawg dua lossis sib npaug rau 0.115 |
Tsawg dua lossis sib npaug rau 0.119 |
|
PLC,% |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
±0.5 |
|
600 degree * 12h |
900 degree * 12h |
1000 degree * 12h |
1050 degree * 12h |
1050 degree * 12h |
|
|
Fe2O3,% |
Tsawg dua los yog sib npaug rau 0.5 |
Tsawg dua los yog sib npaug rau 0.5 |
Tsawg dua los yog sib npaug rau 0.5 |
Tsawg dua los yog sib npaug rau 0.5 |
Tsawg dua los yog sib npaug rau 0.5 |
Lub ntsiab zoo ntawm tshiab micro-nano insulating cib
Tsawg thermal conductivity
Nrog rau cov thermal conductivity tsawg, nws muaj cov nyhuv thermal rwb thaiv tsev zoo thiab tuaj yeem ua rau lub qhov cub phab ntsa thickness thinner nyob rau tib qhov kub thiab txias, yog li txuag nqi ntau dua.
Tsawg tshav kub muaj peev xwm
Vim nws cov ultra-teeb bulk ceev thiab thermal conductivity tsawg, lub insulating cib accumulates tsawg tshav kub nyob rau hauv, ua rau nws ntau zog npaum.
Zoo stability
Nrog tsawg hlau oxide thiab alkali hlau cov ntsiab lus, nws stability yog zoo dua nyob rau hauv lub teev kev pab cuam kub.
Siab zog
Nws lub zog ntawm qhov kub thiab txias yog siab dua li lwm cov khoom siv nrog tib qhov ntom ntom ntawm tib qhov kub.
Tsawg me me kam rau ua
Qhov loj kam rau ua nyob rau hauv 0.05mm, thiab qhov ntev tuaj yeem hloov kho raws li cov neeg siv khoom xav tau.
cov ntawv thov tshiab ntawm micro-nano insulating cib
Nws tuaj yeem siv los ua cov txheej txheem thermal rwb thaiv tsev ntawm cov ntaub ntawv refractory, thiab daim ntawv thov suav nrog txhua yam kev lag luam furnaces,
kub moj tej tawg rauv, cua sov rauv, smelting furnaces, flue kav, cua kub ducts, thiab lwm yam cua sov thiab cua sov-generating qhov chaw.
(a) Roller kilns Tunnel kilns
Daim ntawv thov: Rauv phab ntsa thiab hauv qab rwb thaiv tsev txheej ntawm ceramic roller kiln.
Lwm txoj hauv qab no: Lub teeb ci av nplaum, siab alumina insulating cib, mullite insulating
cib.
Qhov zoo: tsis yooj yim rau shrink, tsis yooj yim rau pulverize, kev ua tau zoo tsis yooj yim rau lwj, ntau dua
raug nqi.
(b) Cov Cua Kub Loj Loj
Daim ntawv thov txoj haujlwm: rwb thaiv tsev txheej ntawm cov cua kub loj.
Lwm txoj hauv qab no: Lub teeb ci av nplaum, siab alumina poly-lub teeb ci ci
Qhov zoo: qis dua sab nraum phab ntsa kub, muaj zog ntau dua, sib dua ntawm thermal
khoom siv nyiaj ntau dua.
vim li cas xaiv peb
Txhawm rau kom ntseeg tau tias cov khoom tau muab rau txhua tus neeg siv khoom raws sijhawm, zoo, thiab muaj nuj nqis, peb lub tuam txhab yuav ua 100% kev siv zog los ua cov lus cog tseg hauv qab no rau cov neeg siv khoom:
1. Txhua batch ntawm cov khoom yuav raug soj ntsuam nruj zoo ua ntej tawm hauv lub Hoobkas kom paub meej tias cov khoom xa tuaj rau cov neeg siv khoom yog tag nrho cov qauv kev lag luam thiab ua tau raws li cov neeg siv khoom xav tau.
2. Tom qab kos npe rau daim ntawv cog lus, peb lub tuam txhab yuav ua tiav cov ntsiab lus ntawm daim ntawv cog lus xws li tus nqi thiab lub voj voog xa khoom.
3. Raws li cov neeg siv khoom xav tau thiab cov ntsiab lus tseem ceeb ntawm daim ntawv cog lus, muab cov kev ntim khoom txhim khu kev qha thiab kev thauj mus los, thiab muab cov khoom raws sij hawm nrog kev ua tau zoo thiab muaj nuj nqis.
4. Muab cov neeg siv khoom nrog ntau yam kev muag khoom ua ntej, hauv kev muag khoom thiab kev pab cuam tom qab muag.
5. Lub luag haujlwm lees txais cov neeg siv kev sib tham hauv xov tooj thiab kev tsis txaus siab txhua lub sijhawm 7 × 24 teev.
6. Tsim cov ntaub ntawv cov neeg siv khoom thiab cov khoom lag luam, thiab ua haujlwm tsis tu ncua lossis tsis tu ncua tom qab kev muag khoom.
7. Yog tias muaj kev tsis sib haum xeeb zoo thaum siv cov khoom, lub tuam txhab yuav daws qhov teeb meem tam sim ntawd hauv cov txheej txheem ntawm cov khoom.
Cim npe nrov: Tuam Tshoj tshiab micro-nano insulating cib manufacturers, lwm tus neeg, Hoobkas
