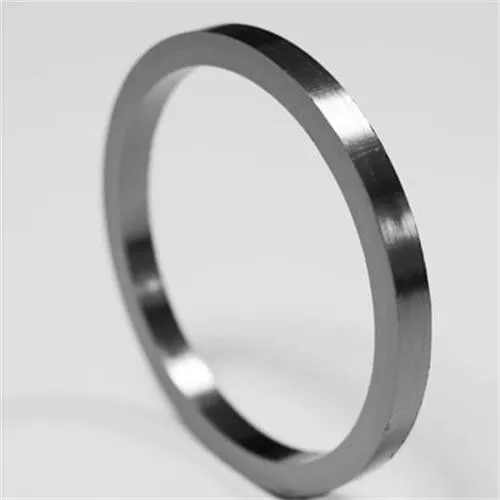

Graphite rings yog crafted los ntawm saj zawg zog graphite ribbons los yog braided graphite fillers, molded rau hauv ib lub nplhaib ntawm ntau qhov ntau thiab tsawg. Lawv tsim nyog rau kev sib khi ntau yam ntawm cov xov xwm, suav nrog cov dej kub, qhov kub thiab txias siab, cov dej hloov pauv cua sov, nitrogen, cov kuab tshuaj organic, hydrocarbons, thiab cov kua dej kub tsawg. Cov nplhaib no feem ntau yog siv hauv compressors, twj, li qub, tshuaj twj, thiab ntsuas. Lawv tuaj yeem tiv taus siab txog li 25 MPa, qhov kub thiab txias ntawm -200 degree mus rau 850 degree, linear speeds mus txog 30 m / s, thiab muaj pH compatibility ntawm 0 txog 14.
cov ntaub ntawv technical ntawm graphite nplhaib
|
Parameter |
Tus nqi/cov ntaub ntawv |
|
Khoom siv |
Flexible graphite ribbons lossis braided graphite fillers |
|
Siab Muaj Peev Xwm |
Mus txog 25 MPa |
|
Qhov kub thiab txias |
-200 degree rau 850 degree |
|
Linear Ceev |
Mus txog 30 m / s |
|
pH Compatibility |
0 rau 14 |
|
Tsim nyog Media |
Cov dej kub, qhov kub thiab txias, thiab cov cua kub siab, cov dej sib pauv cua sov, nitrogen, cov kuab tshuaj organic, hydrocarbons, cov kua kub kub, thiab lwm yam. |
|
Daim ntawv thov |
Compressors, twj tso kua mis, li qub, tshuaj ntsuas, ntsuas, thiab lwm yam. |
graphite nplhaib kev ua tau zoo thiab cov yam ntxwv
AGRM, raws li ib tug kws graphite nplhaib chaw tsim tshuaj paus, peb cov khoom zoo heev.
1. Lub nplhaib graphite muaj qhov zoo ntawm tus kheej lubricating
2. Graphite nplhaib muaj lub siab rebound coefficient
3. Lub nplhaib graphite tuaj yeem txiav ntawm lub kaum sab xis 45 degree raws li cov neeg siv xav tau.
kev siv ntawm graphite rings
Seals thiab Gaskets
Siv nyob rau hauv high-temperature, high-pressure ib puag ncig rau sealing li qub, twj tso kua mis, compressors, thiab cov kav dej hauv kev lag luam xws li petrochemicals thiab roj thiab roj.
Rotary Seals
Ua haujlwm nyob rau hauv cov tshuab xav tau cov kua los yog roj sealing thaum tso cai rau kev sib hloov, xws li cov tshuab ua teb thiab tshuab ziab khaub ncaws.
Thaum tshav kub kub Exchangers
Qhov zoo tshaj plaws rau kev hloov hluav taws xob zoo hauv HVAC systems, cov cuab yeej siv, thiab cov chaw tsim hluav taws xob vim lawv cov thermal conductivity thiab kub tsis kam.
Bearings thiab Bushings
Siv rau kev sib txhuam qis, nws tus kheej lubricating bearings thiab bushings hauv twj, motors, thiab mechanical seals.
Hluav taws xob tiv tauj
Ua hauj lwm raws li hluav taws xob tiv tauj hauv cov keyboards, Circuit Court breakers, thiab hluav taws xob motors vim lawv cov hluav taws xob conductivity.
Graphite Crucibles
Siv nyob rau hauv high-temperature hlau melting thiab casting vim lawv tsis kam mus thermal shock thiab tshuaj corrosion.
graphite nplhaib hloov txheej txheem
Yog hais tias lub nplhaib graphite puas lawm, cam khwb cia txhuas pas nrig muaj qhov ntxhib saum npoo, thiab txoj kev dej ntshiab, lub nplhaib graphite yuav tsum tau hloov.
Loosen plaub bolts ntawm crystallizer thiab tshem tawm ntawm lub rooj pwm.
Tshem tawm peb lub O-rings, siv lub cuab yeej tshwj xeeb rau unscrew lub nplhaib siab, thiab tshem tawm lub phaj adapter.
Loosen ob lub hex socket bolts ntawm lub crystallizer thiab muab faib ua ob ntu. Nco ntsoov tshem O-ring ntawm ob lub puab tsaig.
Muab lub nplhaib sab sauv ntawm lub crystallizer rau ntawm lub rooj me me, thiab kub nws nrog cov roj av liquefied roj teeb kom txog thaum lub nplhaib graphite poob.
Muab lub nplhaib sab sauv thiab nruab ib lub nplhaib graphite tshiab, ntxiv cov khoom me me kom ruaj ntseg. Siv roj rau lub nplhaib graphite thaum nws tseem kub.
Tom qab tso cai rau lub Cheebtsam kom txias lawm, reinstall tag nrho cov seem thiab ntxuav lawv kom huv si. Xyuas kom lub me me O-ring tau raug muab tso rau thiab tias lub qhov dej ntws tau zoo sib xws.
