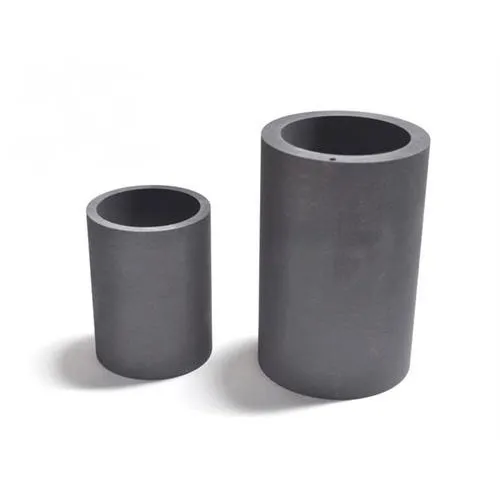

Lub graphite crucible feem ntau yog tsim los ntawm ntuj flake graphite, nrog cov yas refractory av nplaum los yog cov pa roj carbon monoxide ua tus khi. Lub crucible no paub txog nws qhov kub-kub kuj, muaj zog thermal conductivity, zoo heev corrosion kuj, thiab lub neej ntev kev pab cuam. Nws tsis tshua muaj thermal expansion coefficient ua rau nws tiv taus cov kab mob tshwm sim los ntawm kev hloov kub ceev, txawm tias thaum cua sov lossis cua txias. Tsis tas li ntawd, nws muaj zog corrosion kuj tiv thaiv ob qho tib si acidic thiab alkaline kev daws teeb meem, muaj cov tshuaj lom neeg ruaj khov zoo, thiab tseem tsis muaj zog thaum lub sij hawm smelting txheej txheem, kom ntseeg tau tias tsis muaj tshuaj lom neeg tshwm sim.
cov ntaub ntawv technical ntawm graphite crucible
|
Cov khoom |
Chav tsev |
Specification |
|
|
|
Loj Loj |
mm |
0.045-2 |
|
|
|
Kev ceev ceev |
g/cm3 |
1.65-1.85 |
|
|
|
Kev tiv thaiv |
μΩ•m |
6.0-11.0 |
|
|
|
Khoov zog |
Mpa |
18-36 |
|
|
|
Compressive zog |
Mpa |
36-75 |
|
|
|
C.T.E |
×10-6/ degree |
2.9-3.0 |
|
|
|
Tshauv |
% |
0.01-0.1 |
|
|
|
Hloov |
Txoj kab uas hla |
mm |
10-1100 |
|
|
Ntev |
mm |
Tsawg dua los yog sib npaug li 2500 |
|
|
|
Cov khoom tuaj yeem ua tiav raws li kev txiav txim siab lossis kos duab. |
||||
siv cov graphite crucibles
Hlau Casting:Siv rau melting thiab pouring hlau xws li txhuas, tooj liab, thiab precious alloys, muab ib tug ruaj khov, inert ib puag ncig rau high-zoo castings.
Metallurgy:Qhov tseem ceeb hauv kev sib xyaw ua ke, kev ua kom zoo, thiab kev tshuaj xyuas hlau, ua kom muaj kev tswj xyuas meej ntawm cov khoom siv hlau thiab cov khoom.
Iav & Ceramics:Siv rau hauv melting thiab refining cov ntaub ntawv rau iav thiab ceramic ntau lawm, muab cov cua sov sib xws thiab kev hloov pauv kom zoo.
Kev kho cua sov:Siv nyob rau hauv cov txheej txheem xws li annealing, tempering, thiab quenching, kom ntseeg tau tias zoo ib yam thiab tswj tau.
kev tsim khoom ntawm graphite crucible
Raw Material Xaiv:High-zoo graphite hmoov yog xaiv rau nws cov kev cuam tshuam rau crucible kev ua tau zoo thiab durability.
Kev sib xyaw:Graphite hmoov yog ua ke nrog ib tug binder thiab additives los txhim kho lub zog, thermal conductivity, thiab thermal shock kuj.
Kev tsim:Qhov sib tov yog zoo li siv nias, extrusion, los yog molding txoj kev.
Kev ziab:Tsim crucibles yog qhuav kom tshem tawm noo noo thiab tiv thaiv cracking.
Graphitization:Qhuav crucibles yog rhuab saum 2500 degree nyob rau hauv lub cub tawg los tsim ib tug crystalline graphite qauv, txhim khu kev ruaj ntseg.
Ua tiav:Ntxiv machining los yog tiav ua kom cov crucibles ua tau raws li qhov xav tau qhov ntev thiab smoothness.
Kev Tswj Xyuas Zoo:Cov crucibles tiav tau raug kuaj xyuas kom ntseeg tau tias lawv ua tau raws li cov kev qhia tshwj xeeb thiab cov qauv kev ua haujlwm.
graphite crucible ntim
Raws li tus neeg muag khoom ntseeg siab, AGRM ua kom peb cov graphite crucibles tau ntim nrog kev saib xyuas zoo tshaj plaws. Txhua lub crucible yog qhwv hauv cov ntaub ntawv tiv thaiv xws li ua npuas ncauj lossis npuas qhwv, tom qab ntawd muab tso rau hauv cov thawv ntawv khov kho nrog cov cushioning ntxiv los tiv thaiv kev txav mus los thiab txo qhov kev pheej hmoo ntawm kev puas tsuaj thaum caij tsheb npav. Peb lub hnab ntim khoom yog tsim los khaws cov kev ncaj ncees ntawm cov graphite crucibles, kom lawv tuaj txog hauv qhov zoo meej, npaj kom muaj kev ua tau zoo.
